How do I identify the left and right arms on the Crosswing?Updated 5 months ago

When the arms are not installed, you can easily identify the left (L) and right (R) arms on the Crosswing by checking the logo orientation and wielded support. The logo should always face out and be oriented properly (not upside down).

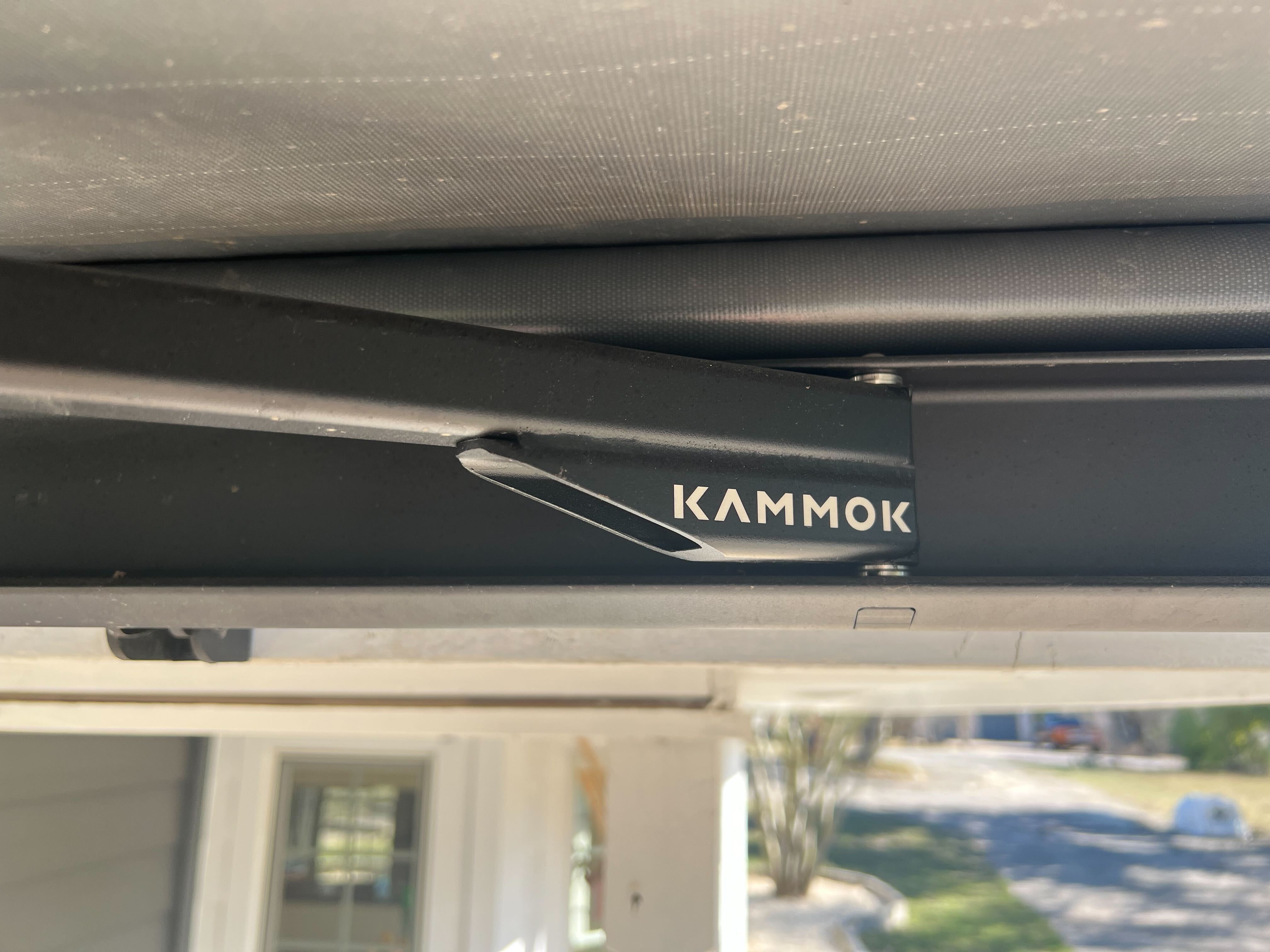

For the “left” the welded support is on the top, which offsets the primary portion of the arm to the bottom.

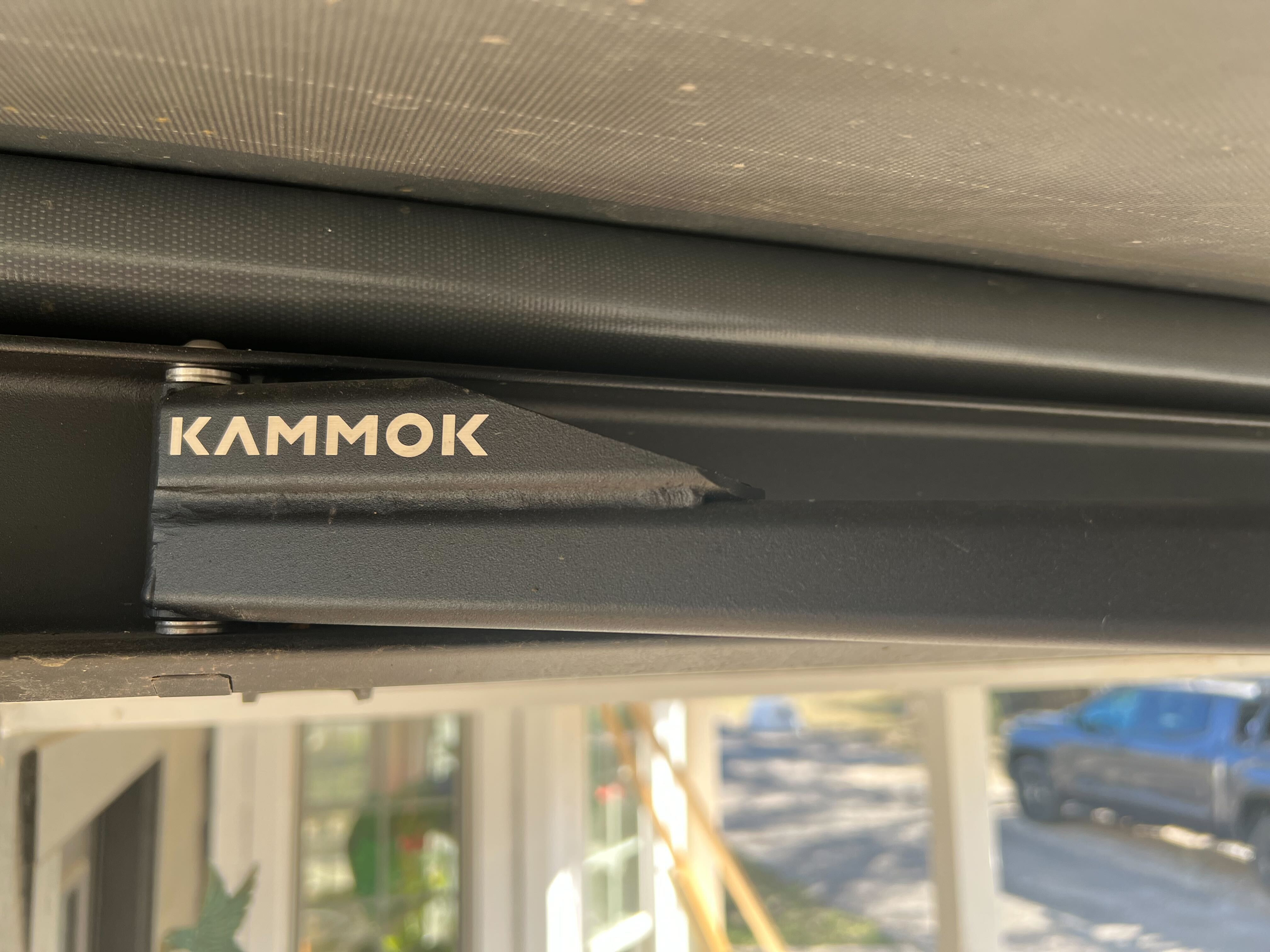

For the “right” the welded support is on the bottom, which offsets the primary portion of the arm to the top.

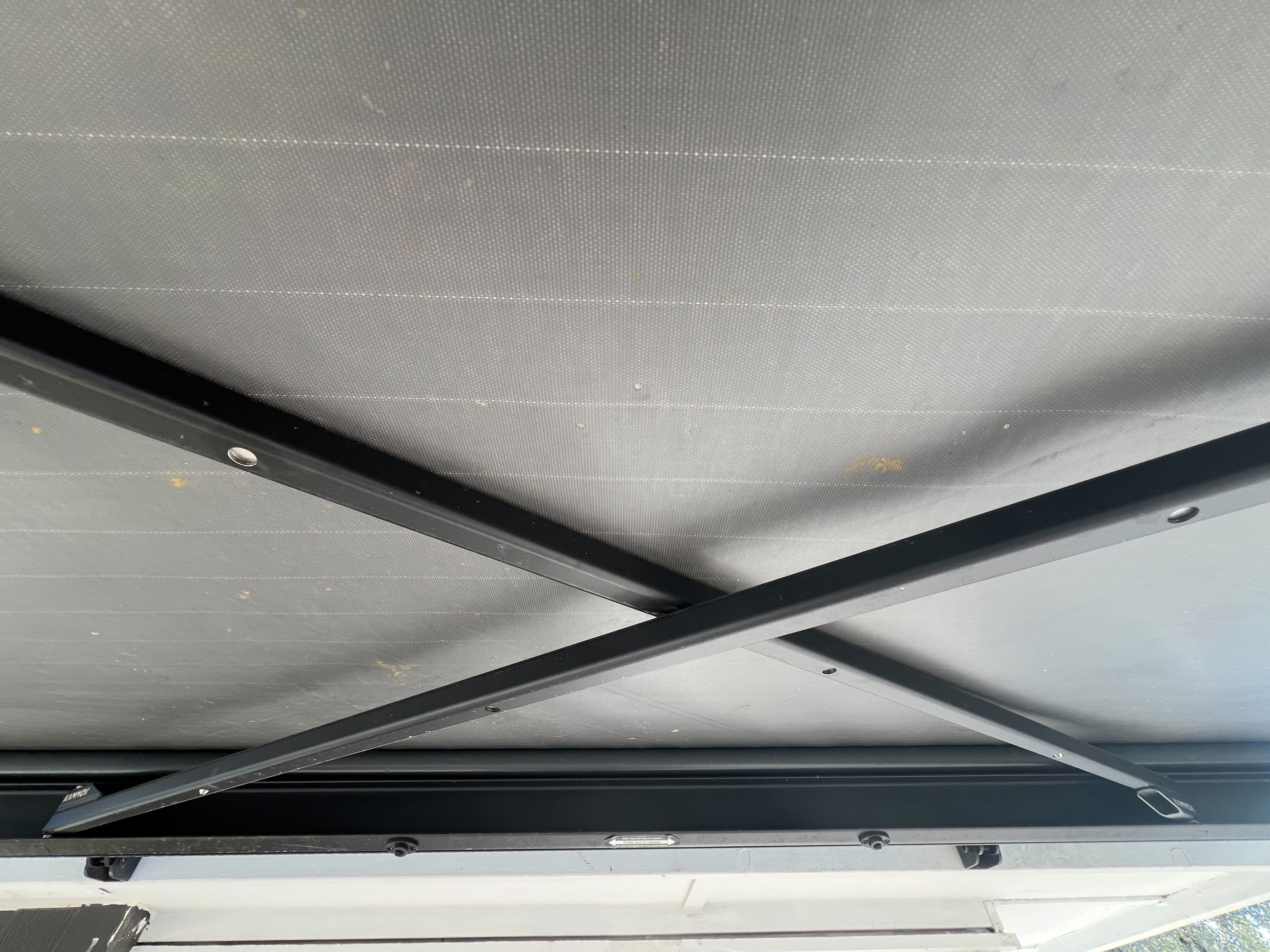

The “left” is the lower arm.  The “right” is the upper arm.  You can see one goes over in the “x” pattern when the Crosswing awning is deployed.
